Rx beamforming |
RX beamforming is one of the critical section in the ultrasound imaging system. It processes the RF data from each receive elements and construct RF scan lines for later process. The ability to deal with huge data flaw and accuracy is essential.
Point focus gives high resolution on the axile direction. Adaptive weighting during receive beamforming can also improve the resolution and overall image quality.
FPGA is normally used here to do beamforming. As FPGA becomes more and more powerful, the cost per element drops dramatically.

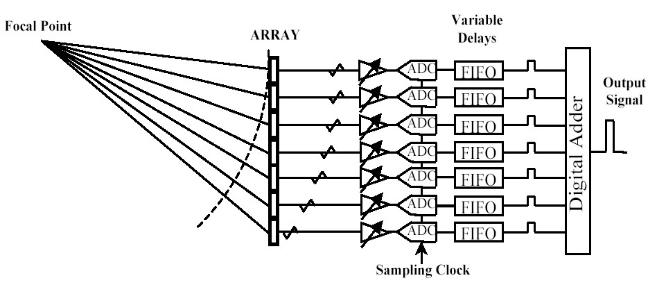

A sample digital beam forming block diagram is given bellow:
| |
|
|
|
|
