Features:

-Palm structure

-6.4 inch TFT LCD with high resolution

-Full digital beam forming technology

-B、B/B、B/M、M、4B

-Thousands of frames permanent storage

-Frames cineloop

-Low power consumption

-USB 2.0, PAL-D port, Support high-capacity U disk storage

-Image transfer computer by USB interface;

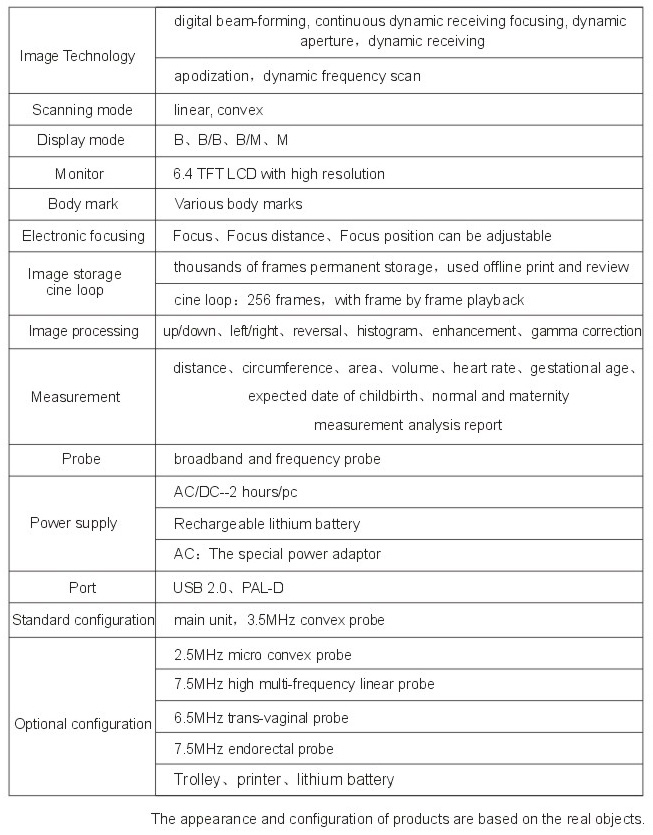

Specifications:

1. 6.4” LCD Display;

2. Display Mode: B, B/B, B/M, M, 4B;

3. M Speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s;

4. Local Zoom(partial zoom);

5. Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.6, ×2.0, ×2.4, ×3.0 ;

6. Depth enhancement/pan function;

7. Frequency conversion;

8. Single-point, multi-point focusing;

9. Gray Scale: 256;

10. Vertical, horizontal flip and B/W conversion;

11. Pseudo color display;

12. 4 kinds body mark

13. Case information, image annotation and auto time display;

14. Measurement of distance, circumference, area, volume, slope, heart rate and cycle;

15. Obstetric package, automatic calculation of fetus weight;

16. Obstetric report;

17. Built-in image storage

18. Frames cine loop

19. Image transfer computer by USB interface;

20. PAL-NTSC convertible

21. Main Power Supply: 100-240V ~ Frequency: 50-60Hz;

22. Battery: 2200mAh ,continuous working 2 hours;

23. Power Consumption: ≤40VA;

24. Main Unit Size: approx. 326×162×47mm(L×H×D);

25. Main Unit Weight: approx 1.5kg (excluding accessories).

Standard Parts

1. Main unit 1PC

2. Probe 1PC

Optional Parts

1. Thermal printer

2. Trolley

3. Kinds of probes

4. Mouse

5. USB data line & software

Compare List of SS-2 and similar products

No.	Item	W	K	Sonostar	Remarks
1	Model	3	51	SS-2/2V	The advantage of this instrument is very good image quality, more than 10,000 image store, support USB U Disk storage, by battery can use more than 2 hours, these are the other similar products from other company very hard to do.
2	Channel	16	16	16
3	LCD size	6.4 inch	6.4 inch	6.4 inch
4	Image store	512	100	16 thousands
5	Elements of probe	64	80	80
6	Work time of battery	＜2 hours	＜2 hours	＞2 hours
7	Image quality	Common	Common	Good
