 Ultrasound B Scanner >> Portable B Scanner >> UProbe-2/UProbe-3 Series(Convex and Linear) Array Ultrasound Probe Scanner


Number:
10110495916
Name:
UProbe-2/UProbe-3 Series(Convex and Linear) Array Ultrasound Probe Scanner
Spec:
Memo:
Class:
Ultrasound B Scanner

    Product Readme

Download the catalog

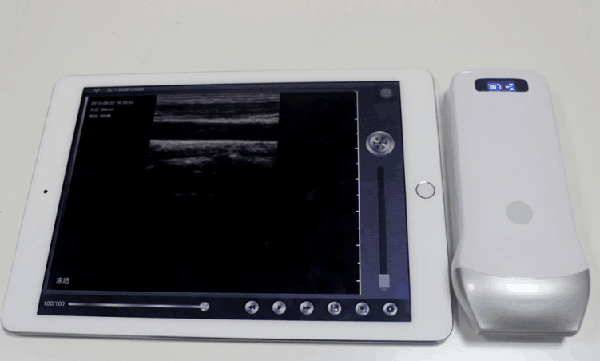

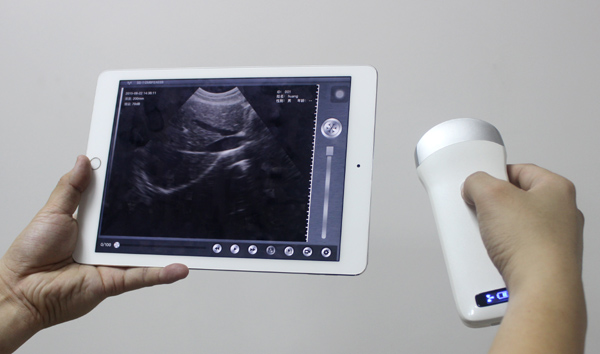

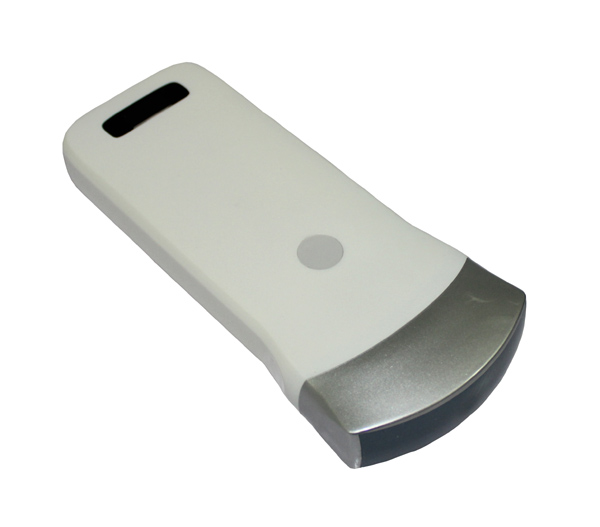

UProbe-2/3 is wireless array probe type scanner.
This wireless probe scanner with integrated ultrasound circuit boards inside, can wirless connect to the PC Tablet, SmartPhone that after installed ultrasound software, then realize the functions of a ultrasound scanner.
It is so small and smart, convenient for carry and operation.

Application Range:
In emergency clinical, hospital ward inspection,  community clinical and outdoor inspect, an easy carried & operated
compact ultrasound such as UProbe-2 wireless probe is desired.
In  addition, the wireless probe can be conveniently used in surgery without  fixing of cables. And by using the
disposable protecting cover, it can easily solve the sterilization issue of the probe.
Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of
the telemedicine.

Feature:
·Workable with Tablet or Smart  Phone
·Built-in and replaceable battery
·Advanced digital  imaging technology, clear image
· High cost-effective
·Wireless connectivity, easy to operate
·Small and  light , easy to carry
·Applicable in emergency, clinic, outdoor and vet inspection
·Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing

Specifications:
-Scanning system: array sweep;
-Frequency: convex array 3.5MHz/5MHz
       linear array 7MHZ/10MHz
-Depth: 240mm, Adjustable
-Screen: Smart phone or tablet screen
-Supporting system: Apple MacOSx (Android, Windows system coming soon)
-Display mode: B, B/B, B/M
-Image gray scale: 256 level
-Pseudo color: 8 kinds
-Image Storage: Using intelligent terminal customers to use (mobile phones,Tablet PC) storage devices
-Measure: distance, area, obstetrics and other;
-Power: by built-in battery
-Power consumption: 10W (unfreeze) /4W (freeze)
-Battery working time: 3 hours
-Size:104mm*50mm*22mm
-Weight: 308 gram

Standard Configuration:
-Main Host(probe)  1 Unit
-Internal Battery and charger 1 Set
