 Ultrasound B Scanner >> Portable B Scanner >> SS-8 Laptop Ultrasound B scanner(ARM based)


Number:
51020342616
Name:

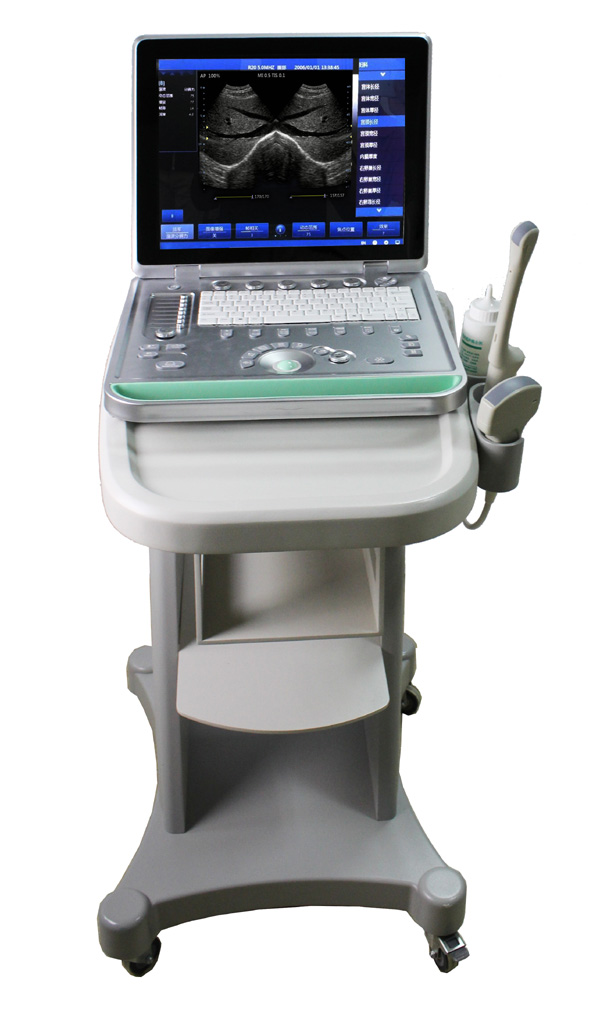

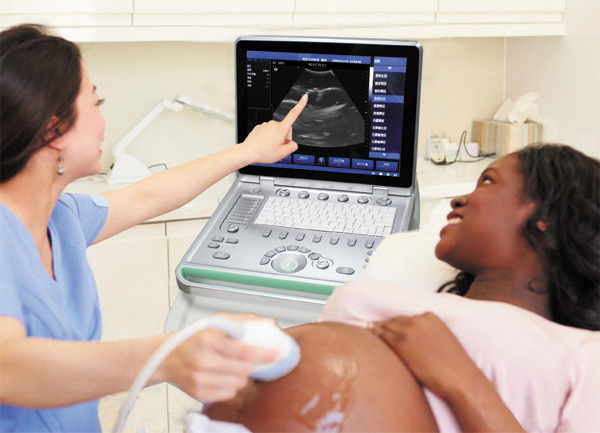

SS-8 Laptop Ultrasound B scanner(ARM based)
Spec:
Memo:
Class:
Ultrasound B Scanner

    Product Readme

Feature:
-Pretty and light
-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image

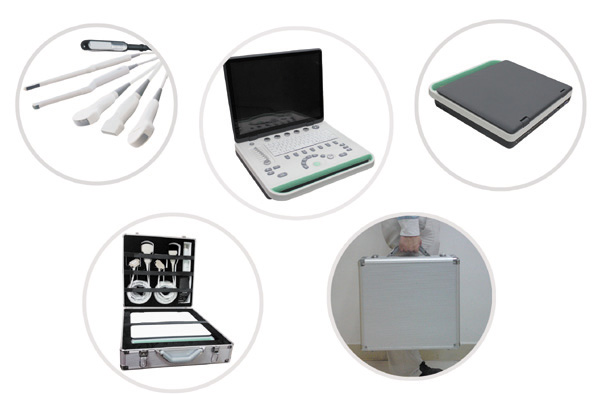

-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-ARM system powerful function, include report, can work with laser printer
-Built-in battery(can work more than 3 hours)
-High Cost-effective

Specifications:

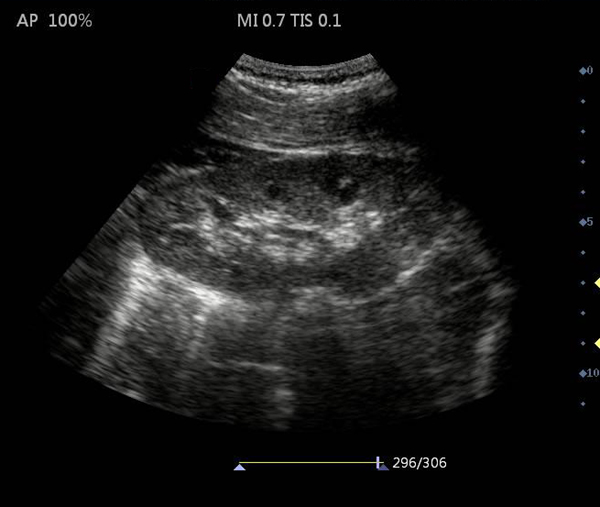

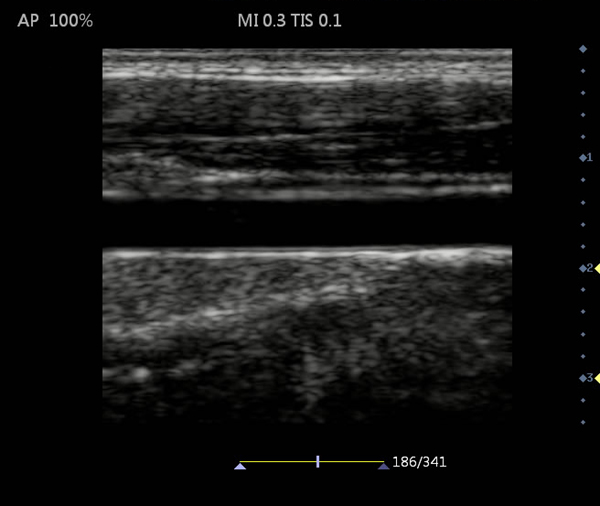

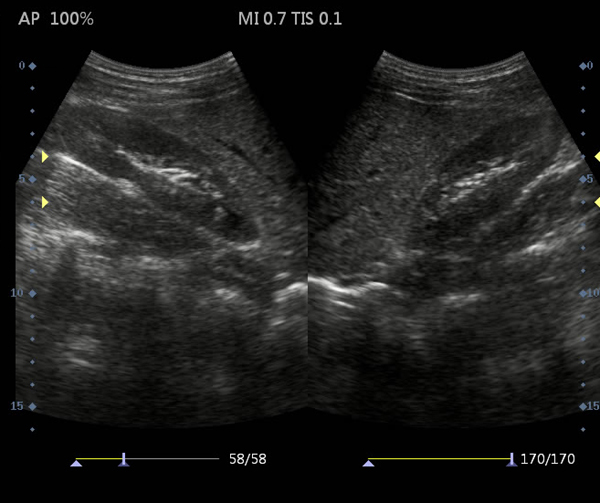

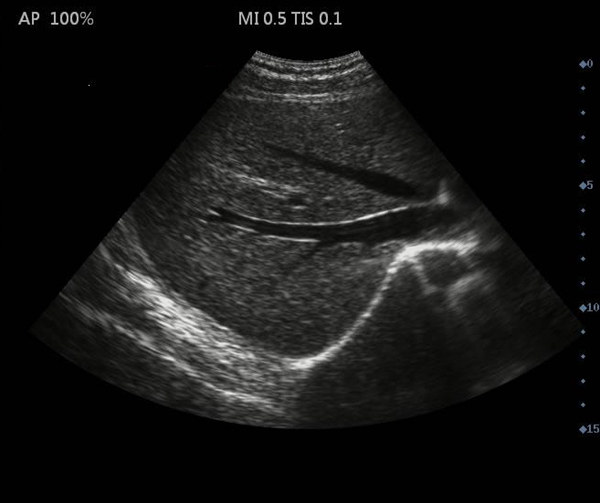

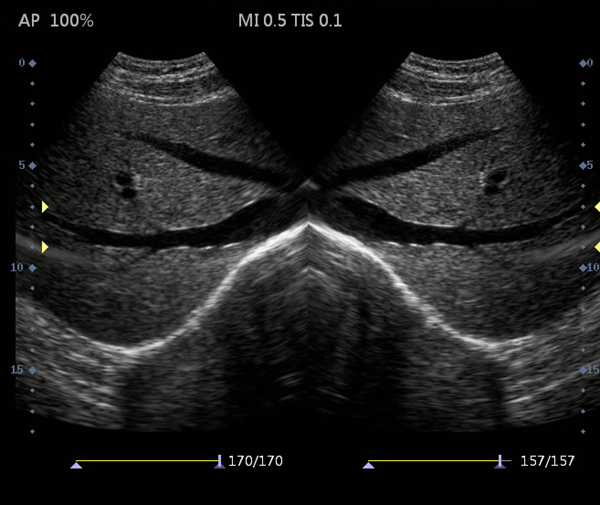

-Image mode: B,M,2B,B/M,4B
-Gray scale: 256 gray, and pseudo color
-Display: 15LCD monitor
-Transducer frequency: 2-11Mhz
-Digital technology: Wide-angle imaging, Panoramic focusing technology, Rolling M technology
-Scanning depth: 300mm
-Imaging Pre-processing: Cloud processing technology, 8-segment TGC, Gain(B&W), Dynamic range, Persistence, M Soften, Noise suppression

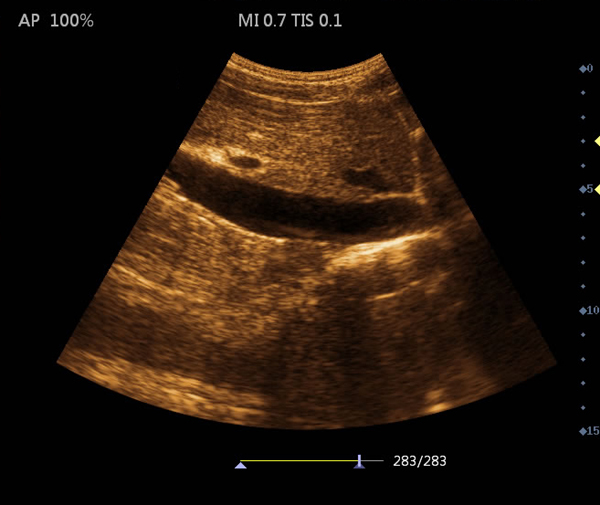

-Imaging Post-processing: Image enhancement, Gray Map, Colorize Map, Tissue Specific Imaging, Left/right reverse, Up/down reverse
-Cine-loop: 334 frame cine loop memory
-Zoom: Pan zoom
-THI: Tissue Harmonic Imaging
-Optimize
-Store: built-in 8G memory
-Communication: DICOM 3.0
-Print: by video printer, or by laser printer
-Report edit function
-Measurement & Calculations:
 B mode: Distance, angle, area, volume, trace length, distance ratio
 M mode: Distance, time, slope, HR

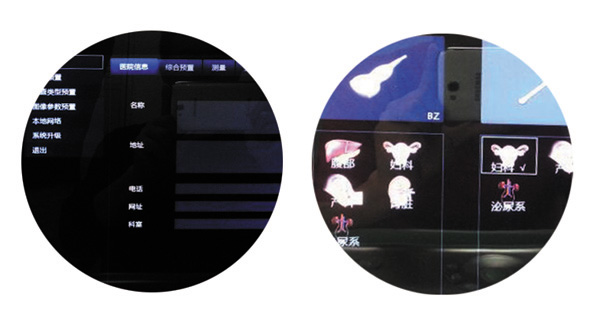

 Software packages: Abdomen, OB, gynecology, small Part
-Transducer connector: 2
-Peripheral ports: 1 BNC video port, 2 USB ports, 1 networking-port, 1 power inlet port
-Power supply to power adapter: AC 100-240V 50/60HZ <80VA.
-Built-in battery: work 3 hours
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)
