 Ultrasound B Scanner >> Portable B Scanner >> UProbe-1 Sector Ultrasound Probe Scanner


Number:
1011037816
Name:
UProbe-1 Sector Ultrasound Probe Scanner
Spec:
Memo:
Class:
Ultrasound B Scanner

    Product Readme

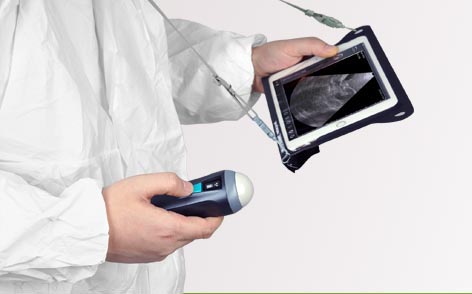

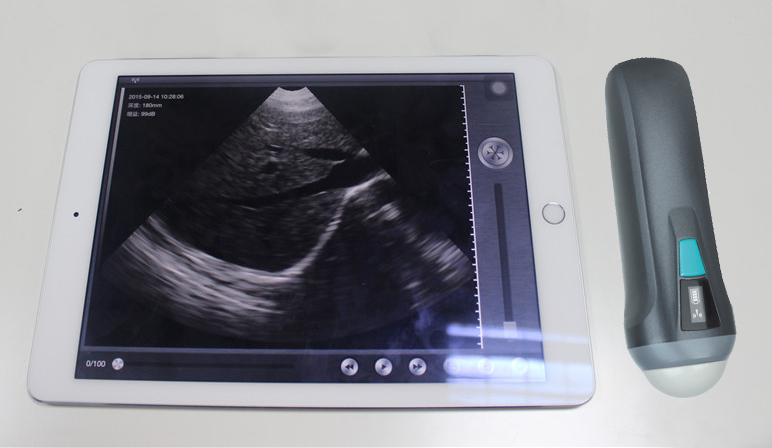

UProbe-1 is a wireless sector probe scanner.
This wireless probe scanner with integrated ultrasound circuit boards inside, can wirless connect to the PC Tablet, SmartPhone that after installed ultrasound software, then realize the functions of a ultrasound scanner.
It is small and smart, convenient for carry and operation.

Specifications:
-Scanning system: sector sweep;
-Frequency:3.5MHz/5MHz
-Depth: 180mm;
-Host: Apple IPAD mini/IPAD air/IPHONE etc.
-Throughout: 54Mbps
-Field of view: 80 degree
-Display mode: B
-Image gray scale: 256 level
-Connection: 802.11.g WIFI(AP)
-Pseudo color: 8 type
-Measure: distance, area, Obstetrics;
-Power supply: by built-in battery
-Power consumption: 5W (probe run) /1W (probe stop)
-Battery last: 5 hours
-Footprint: 138mm×44mm×38mm
-Weight: 200 gram

Standard Configuration:
-Main Host(probe)  1 Unit
-Internal Battery and charger 1 Set
