 Other Products >> Ventilator/Anesthesia >> SV-200 Intensive Care Ventilator


Number:
5250461416
Name:

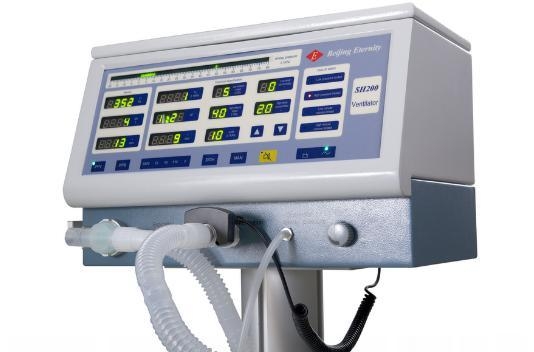

SV-200 Intensive Care Ventilator
Spec:
Memo:
Class:
Other Products

    Product Readme



Microprocessor controlled system
Suitable for Adult&Pediatric
LEO display
Convenient using
Humidifier use eleectronic knob setting

SPECIFICATIONS:
Patient type: Adult Pediatric
Driven moda: Gas driven electronically control
Working mode: pressure limited; time cycled; volume controlled
Setting: Keypad
Ventilation moda: IPPV,SIPPV,SIGH, SIMV.MAN.SPONT
Tidal Volume: 0~ 1500 ml
Breathing rate: 6 ~ 60bpm
I : E : 2: 1 ~ 1: 4
Trigeer Sensitivity: -2Kpa ~ 2Kpa
ASB pressure: 0 ~ 6Kpa
High pressure : l ~ 8Kpa
Low pressure: 0 ~ 2Xpa
High MV: 0 ~ 30L/min
Low MV: 0 ~ 15L/min
FiO2: 45% ~ 100%
Silence time for alarm: ≤120 s
Monitorin: Tidal volume,Minute volume,Airway
pressure,Rate,FiO2
Alarm: High/Low airway,High/Low Mv,Battery low, FiO2, Power supply failure,Gas supply pressure low
PEEP: (Optional):0 ~ 2kPa
Temperature control
Power supply: 220V±10% , 50HZ±1HZ
Internal Battery (Optional): 4 hours
High temperature alarm, Auto-power cut off
Power supply: 220±l0%, 50HZ±1HZ
Option: Oxygen-Air Blender, Compressor
