 Ultrasound B Scanner >> Portable B Scanner >> UTouch-8 Touch Screen LCD Ultrasound Scanner(ultrasoni,black white,scanner)


Number:
550175416
Name:
UTouch-8 Touch Screen LCD Ultrasound Scanner(ultrasoni,black white,scanner)
Spec:
Memo:
Class:
Ultrasound B Scanner

    Product Readme

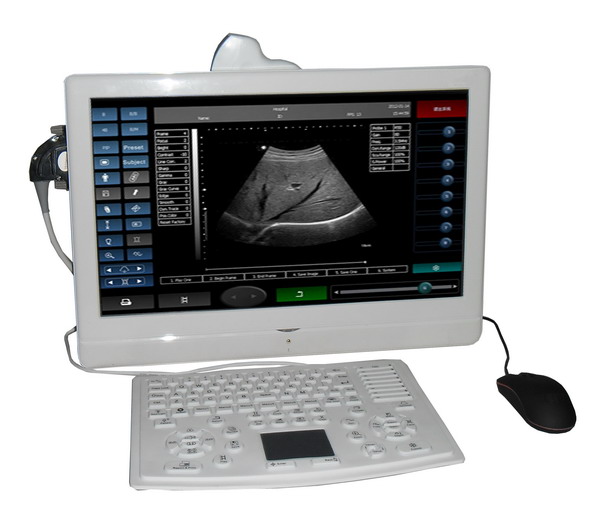

UTouch-8 is first ultrasound scanner that with large and touch screen, it is popular for its pretty appearance, powerful functions, and easy to operation.
It is computer based so its functions is powerful, include can create detail diagnosis report, with large volume store, can work with any USB printer. And it also can use as a office computer when not use it as ultrasound scanner.

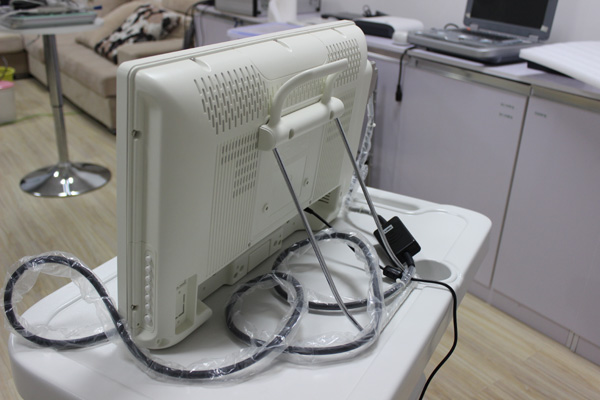

Its structure also is special, can put on desk, also can wall hanging, and install on a trolley with rocker arm.

Feature:
·Full digital imaging technology
·PC based powerful information management
·Complete application software packages
·Broadband Multi-frequency probes
·Large volume permanent storage
·USB ports & RJ-45 ports
·Compatible with laser/inkjet printers

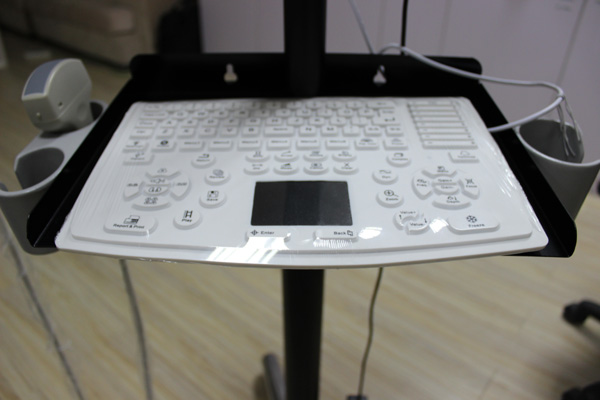

·Silica gel waterproof keyboard
·18 inch large LCD and touch screen
-Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.

Specification:
-Monitor: 18.5 inch touch LCD screen
-D-Maximum Scanning Depth: 250mm
-Multi-frequency: 5 segment frequencies+THI for check
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0.
-Angle scanning: There are 25%, 30%, 35%…100% altogether16 angles for scanning
-Dynamic range: Continuous adjustable: 30~120dB, 16 levels in all.
-Contrast: 0-100 continuous adjustable
-Cine Loop: 64, 128, 256, 512, 1024frame, Auto/manual cine loop
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode
-Image direction: Up/down/left/right and polarity reversion
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment,  contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Supported output apparatus: 3 USB connector for U-Disk, Laser/ink printer, mouse, keyboard; RJ-45 connector for internet and DICOM3.0
-Measurement and calculation:
  B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
  M mode: heart rate, time, distance, slope and stenosis;
  Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
  Obstetric: gestation age, fetal weight, AFI;
  Cardiology: LV, LV function, LVPW, RVAWT;
  Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;
  Small parts: optic, thyroid, jaw and face.
-Storage: Image storage, cine loop storage, measurement result and report can be stored, storage capacity 4G.
-Patient information management: Diagnosis case management, report print, comment library, image output(USB), import data.
-Marks: Comment, body mark(140 kinds for different parts' option), arrow.
-DICOM Real-time Ethernet transmission: This option allows real-time transmission by Ethernet. Ethernet-capable allows local and internet ultrasound data transmission.
-System preset: System preset includes parameter presets of abdominal , GYN, OB ,vascular, cardiac, small organs, andrology, urology, comments, manufacture default settings, system upgrade and maintenance settings.

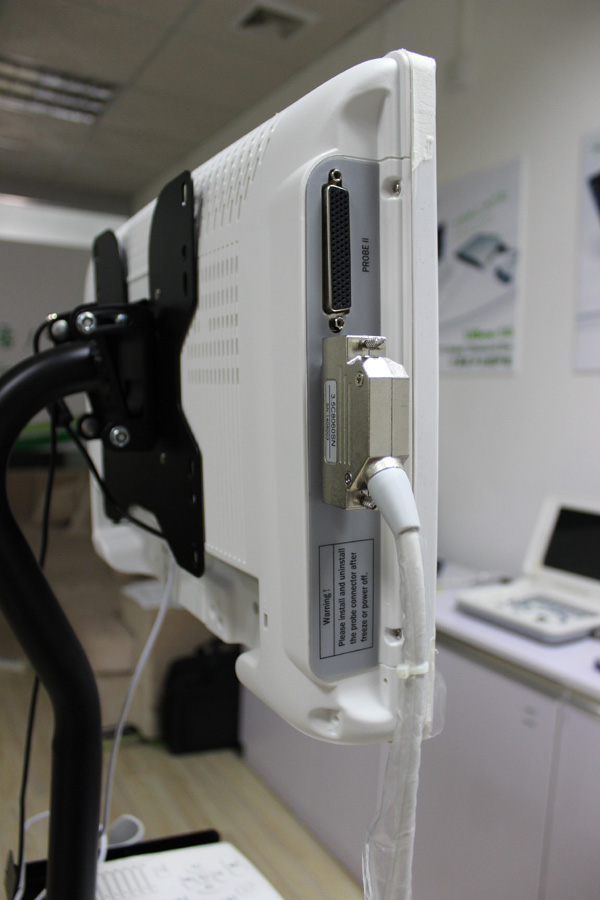

-Probe Connector:2
-Dimension: 48*34*10cm
-Weight: Around  6.5kg

Standard Configuration:
-Ultrasound scanner host 1 unit
-Convex probe(R60, 3.5MHz) 1pcs
-Power adapter 1pcs
-Computer Keyboard and Mouse 1set

Optional:
-Linear, trans-vaginal, micro-convex, rectal probe

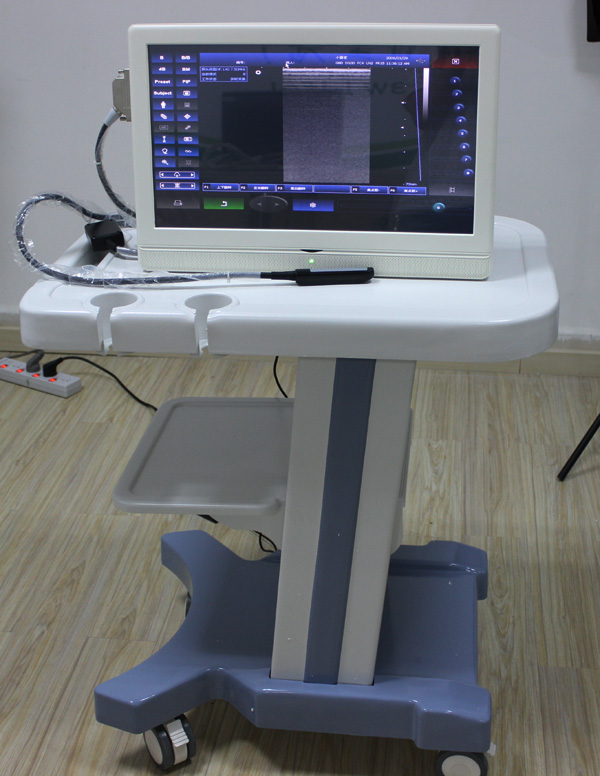

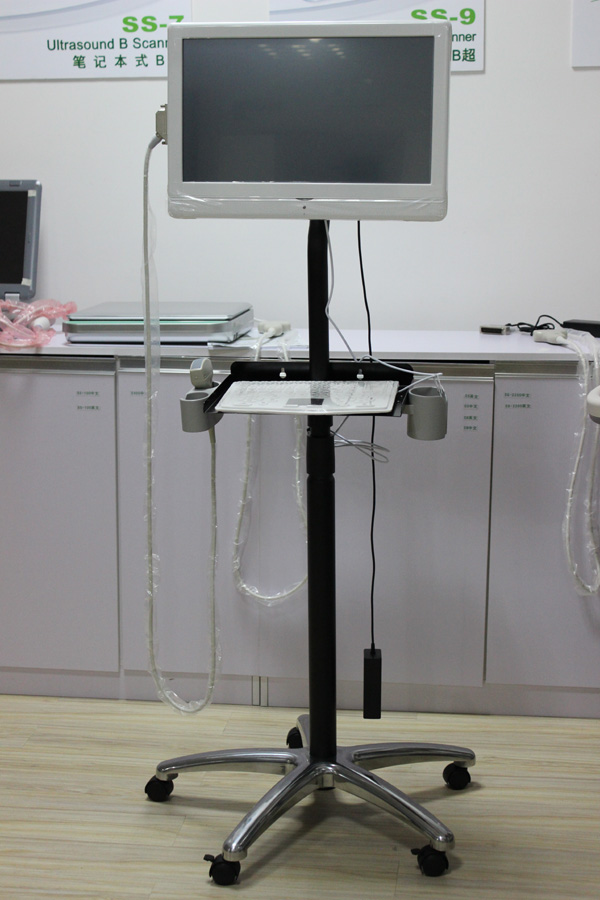

-Trolley with rocker arm
-USB laser/ink printer, video printer
-3D software
-Battery


Report


Report Model


Patient Manage


Set OB List


Set Application Image Parameters

 DICOM

Can add ECG Modular and software then also can use as ECG
