Ultrasound B Scanner >> Portable B Scanner >> UBook-8 Laptop PC based ultrasound scanner(black white,scanner)


		Number:	12302172416

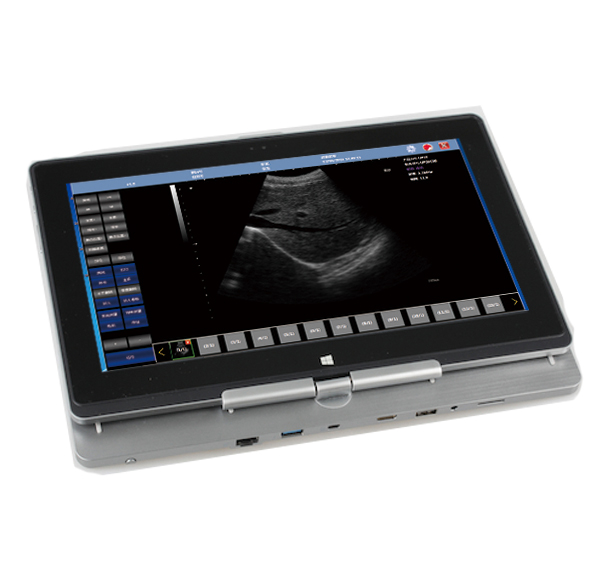

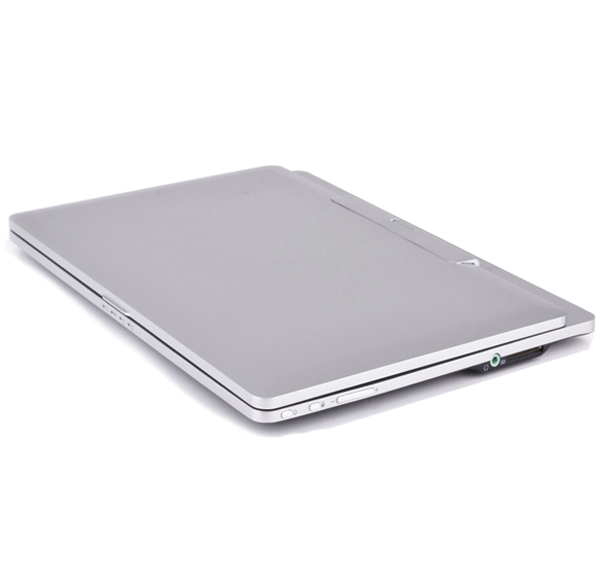

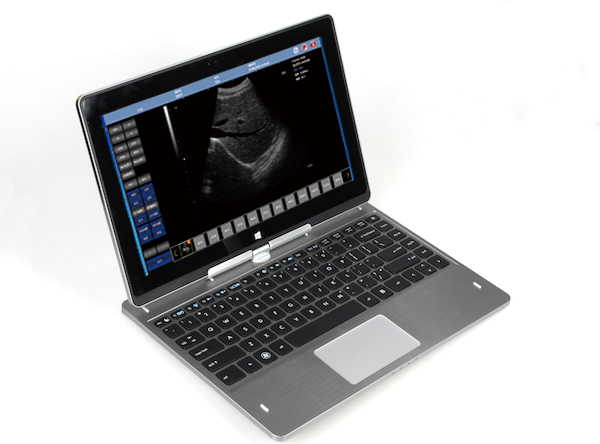

		Name:	UBook-8 Laptop PC based ultrasound scanner(black white,scanner)
		Spec:
		Memo:
		Class:	Ultrasound B Scanner

Product Readme

Feature:
-12 inch screen, pretty, portable and light
-Full digital imaging technology, crystal-clear Image
-Abundant functions, powerful report management
-Large volume storage image and cineloop
-Wifi DICOM display and transfer
-Compatible with laser/inkjet printers
-Long work time by internal battery
-Also can use as laptop computer

Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate,line average, edge, enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age(AC,BPD,CRL,FL,THD,GS,OFD,TIBIA,HC,TAD,FTA), fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
Veterinary:Cattle: BPD, CRL, TD;Horse: GA; Dog: GS; Cat: HD, BD;Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, external screen
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk
-Work time by battery: about 2 hours
-Monitor: 12 inch screen
-Dimension of tablet: 1.3cm(height)×19.7cm (width) ×29cm(length)
-Weight: Around 1.5kg
-Probe Connector：1(USB port)

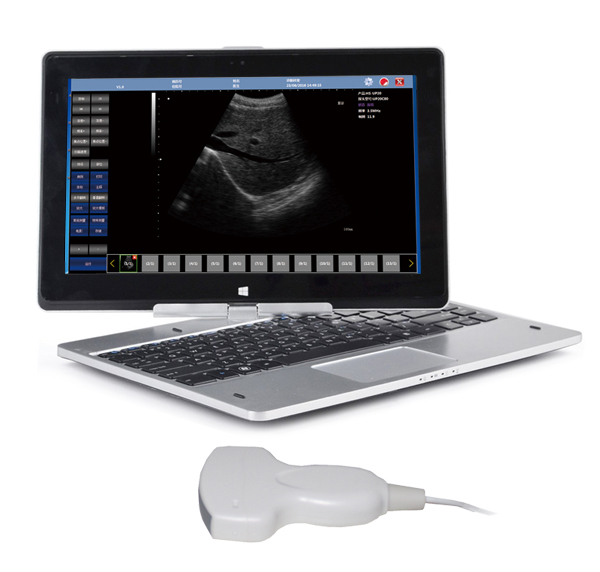

Standard Configuration:
-Host(windows laptop) 1 unit
-Convex probe(R60, 3.5MHz) 1pcs
-Power adapter and charger 1pcs

Optional:
-Linear, trans-vaginal, micro-convex, rectal USB probe
-USB laser/ink printer, video printer
-USB to VGA adapter
-Ultrasound keyboard
