 Other Products >> Ventilator/Anesthesia >> SV-100S Medical Ventilator


Number:
11182313816
Name:

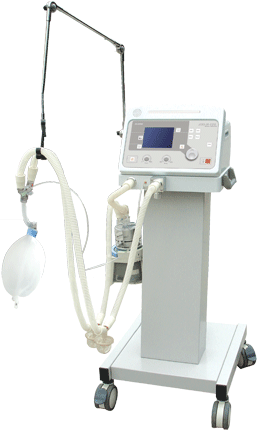

SV-100S Medical Ventilator
Spec:
Memo:
Class:
Other Products

    Product Readme


 Physical Specifications

 Dimensions

 Width:    50cm  Depth:    46cm  Height:   110cm    Weight    15Kg



 Environmental Specifications

Operating Requirements

Storage/Shipping Requirements

Temperature:            5 to 40oC

Temperature:            -20 to 70oC

Relative Humidity:     less than  80%

Relative Humidity:        less than 93%

The atmosphere pressure: 70 to 106 kPa

The atmosphere pressure: 70 to 106 kPa



 Electrical Specifications And Fuse Specification Information

  Input Voltage Requirements

Fuse Quantity:         2

 AC Voltage:        220V+/-10%  50HZ+/-2%

Current Rating:   0.8 A

Power:             170 VA

Voltage Rating:   250 Volts

 Battery:>8h

Type:            5*20 mm RT

 Output Voltage Specification Information

 AC Voltage:        220V+/-10%

 Frequency:      50HZ+/-2%

 Power:             130VA

 Pneumatic Specifications

Oxygen Inlet

 Pressurized Oxygen:   0.28~0.6 MPa medical oxygen

 IEC Classification

 Ordinary equipment, not protected against the ingress of liquids Not protected/Not suitable for use in the presence of flammable anesthetic gases

Class ¢ñ, Type B

 Performance Specification

 Controls



 Power

 ON/OFF

 Modes

 IPPV(C) IPPV+SIGH SIPPV(A/C)   SIMV  MANUAL

 Tidal Volume

 0~2000ml

 Breath Rate

   1~100 bpm

PEEP

  0~20hPa

%O2

   40~100%

Sigh



Inspiratory Time

0.3~6sec

Trigger Level

 -20~20hpa

Over Pressure Relief

 less than 60hpa



 Alarms and Indicators

 High Pressure Alarm Limit

 flash, red indicator, can be adjustable

 Low Pressure Alarm Limit

 Red indicator , can be adjustable

 High Minute Volume Alarm Limit

flash, Red indicator, can be adjustable

 Low Minute Volume Alarm Limit

 flash, Red indicator, can be adjustable

 High Rate Alarm Limit

 flash, Red indicator, can be adjustable

Apnea interval

15, 30, 45, 60second     flash, Red indicator

Alarm Silence

120sec. max

Power

Red indicator

Insp. phase

Green indicator

Exh. phase

Green indicator

T.VOL Indicator

Green indicator

MIN. VOL Indicator

Green indicator

PRESSURE Indicator

Green indicator

RATE Indicator

Green indicator

 Monitors and Wave Display

 Tidal Volume



 MIN. Volume

 Total Breath Rate

 Main Circuit Pressure

Wave Display for Main Circuit Pressure and Tidal Volume

 What Is Provided

 Part Name

Number

Specification

  Ventilator

 1



  Mobile

 1



  Humidifier

 1



 Breath Circuit

 1



  Manipulators

 1



 Oxygen Pressure Reducer

 1



 Mask

1



 Lung Simulators

1



Hand Book

1



CD For Operation

1
