Physical Specifications

Dimensions Width: 50cm Depth: 50cm Height: 120cm

Weight 20Kg

Environmental Specifications

Operating Requirements	Storage/Shipping Requirements
Temperature: 5 to 40oC	Temperature: -20 to 70oC
Relative Humidity: less than 80%	Relative Humidity: less than 93%
The atmosphere pressure: 70 to 106 kPa	The atmosphere pressure: 70 to 106 kPa

Electrical Specifications And Fuse Specification Information

  Input Voltage Requirements

Quantity: 2

AC Voltage: 220V+/-10%

Current Rating:  0.8 A

Frequency: 50HZ+/-2%

Voltage Rating:  250 Volts

Power: 170 VA

Type: 5*20 mm RT

Output Voltage Specification Information

AC Voltage:        220V+/-10%

Frequency:      50HZ+/-2%

Power:             130VA

Pneumatic Specifications

Oxygen Inlet

Pressurized Oxygen: 0.28~0.6 MPa medical oxygen

IEC Classification

Ordinary equipment, not protected against the ingress of liquids Not protected/Not suitable for use in the presence of flammable anesthetic gases

Class ¢ñ, Type B

Performance Specification

Controls



Power

ON/OFF

Modes

IPPV (C)    IPPV+SIGH   SIPPV (A/C) SIMV MANUAL

Tidal Volume

0~1800ml

Breath Rate

5~60 bpm

PEEP

0~2KPa

%O2

   45~90%

Sigh



Inspiratory Time

0.5~3sec

Inspiratory Pause

0~1sec

Trigger Level

-1~0kpa

Over Pressure Relief

<6kpa

Alarms and Indicators

High Pressure Alarm Limit

   flash, red indicator, can be adjustable

Low Pressure Alarm Limit

Red indicator , can be adjustable

High Minute Volume Alarm Limit

flash, Red indicator, can be adjustable

Low Minute Volume Alarm Limit

flash, Red indicator, can be adjustable

High Rate Alarm Limit

flash, Red indicator , can be adjustable

Apnea interval

flash, Red indicator, can be adjustable

Alarm Silence

120sec. max

Power

Red indicator

Insp. phase

Green indicator

Exh. phase

Green indicator

T.VOL Indicator

Green indicator

MIN. VOL Indicator

Green indicator

PRESSURE Indicator

Green indicator

RATE Indicator

Green indicator

What Is Provided

Part Name

Number

Specification

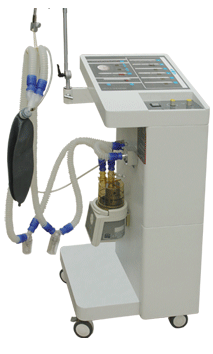

  Ventilator

1

  Mobile

1

  Humidifier

1

Breath Circuit

1

  Manipulators

1

Oxygen Pressure Reducer

1

Mask

1

Lung Simulators

1

Hand Book

1

CD For Operation

1
