Ultrasound Accessories >> Ultrasound Probe >> Convex array probe


		Number:	122141116
		Name:	Convex array probe
		Spec:
		Memo:
		Class:	Ultrasound Accessories

Product Readme

Convex array probe

Type

Model

Frequency

Radius

Scan Angle

Elements

Convex

C3I60

3.5MHz

60mm

59.59°

80

Convex

C3I40

3.5MHz

40mm

75.6°

80

Convex

C3I20

3.0MHz

20mm

110.01°

80

Convex

C3S60

3.5MHz

60mm

61.116°

128

Convex

C3S40

3.5MHz

40mm

89.8°

128

Convex

C2S20

2.5MHz

20mm

90.8°

128

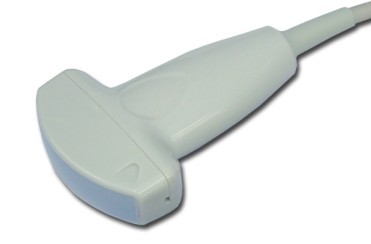

New Product: convex probe for colord oppler.jpg

Hits：1850 UpdateTime：2010/4/2 【Print】【Close】
